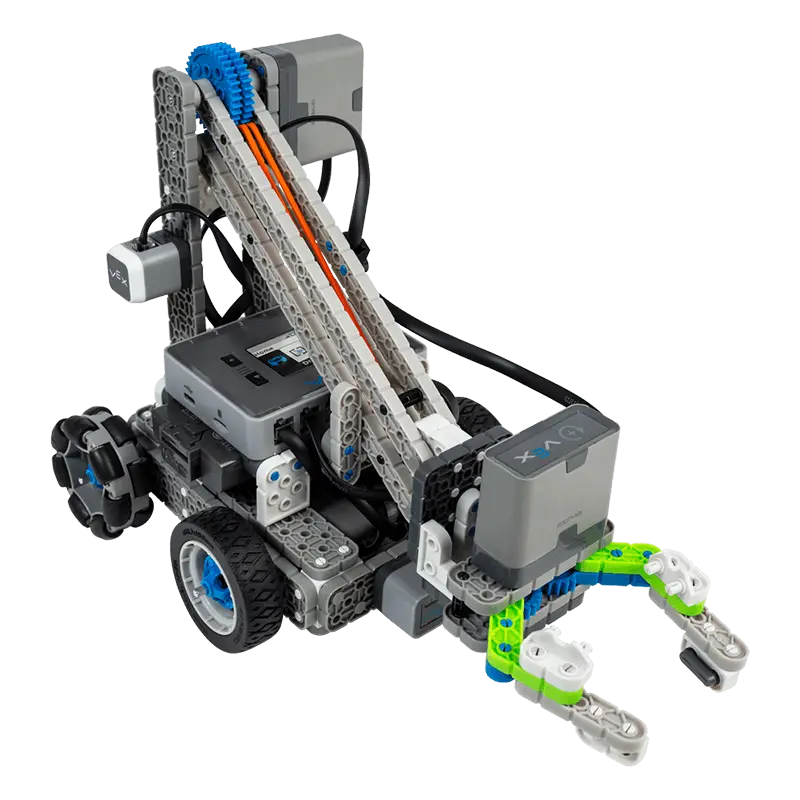

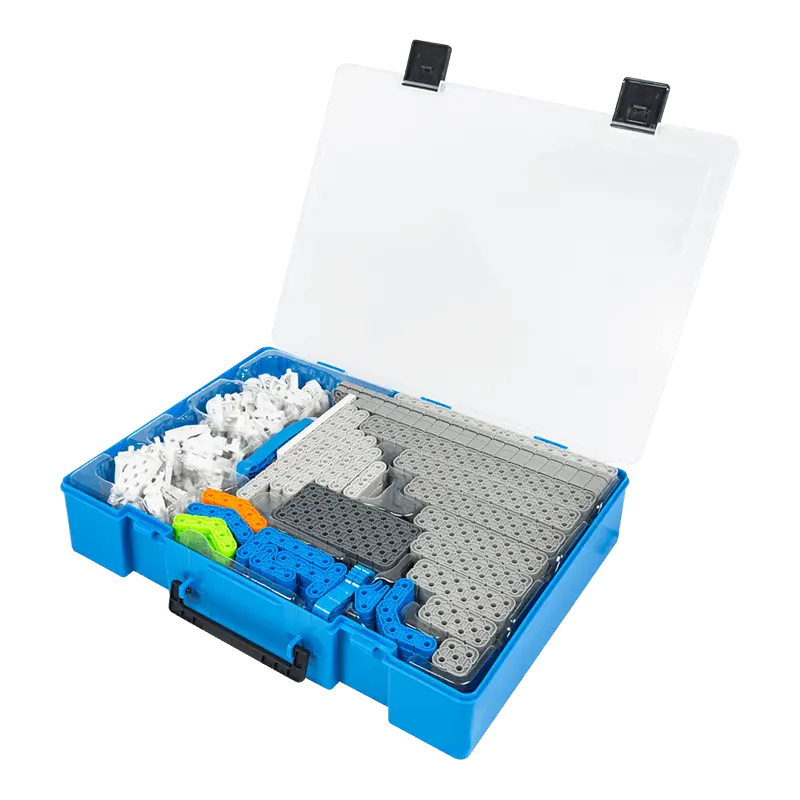

VEX IQ Education Kit (2nd generation)

Electronics

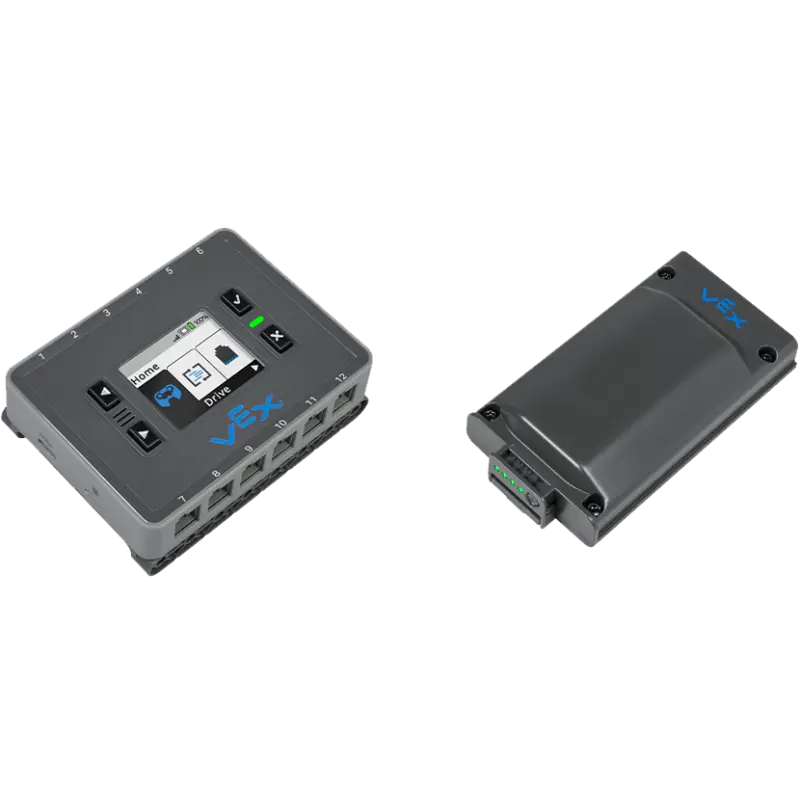

• (1) Robot Brain (2nd generation) (
• (4) Smart Motor (

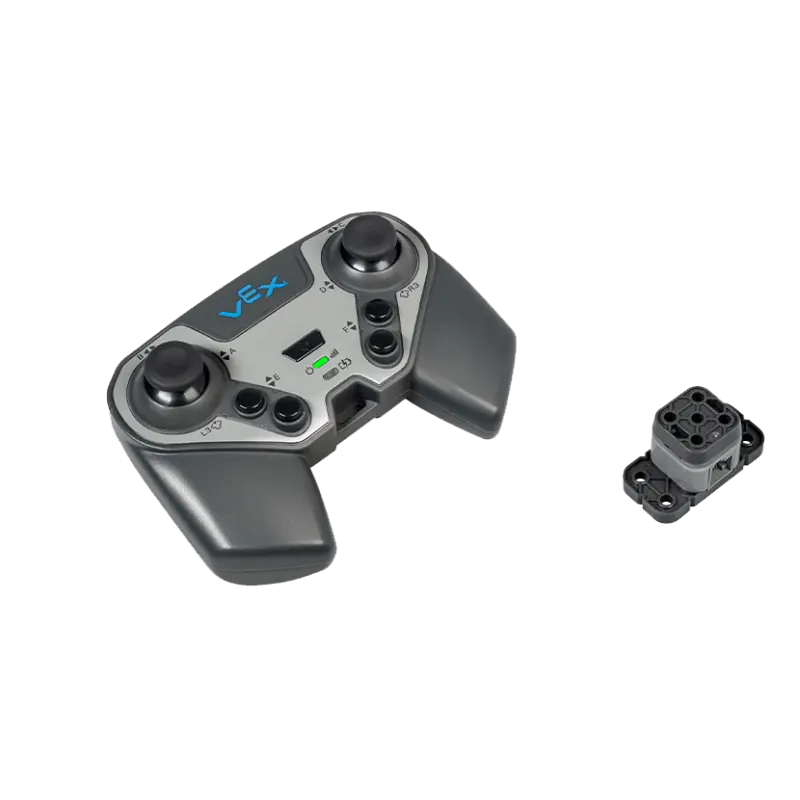

• (1) Controller (2nd Generation) (
• (1) Robot Battery (Li-Ion, 2000 mAh) (
• (1) Touch LED (
• (1) Bumper Switch (
• (1) Optical Sensor (
• (1) Distance Sensor (
• (1) 600mm Cable (
• (1) 400mm Cable (
• (3) 300mm Cable (
• (4) 200mm Cable (
• (1) USB A-C Cable (

Structure

• (5) 1x2 Beam (
• (7) 1x4 Beam (
• (2) 1x5 Beam (
• (6) 1x6 Beam (
• (8) 1x8 Beam (
• (6) 1x10 Beam (
• (4) 1x12 Beam (
• (4) 1x16 Beam (
• (5) 2x2 Beam (
• (6) 2x4 Beam (
• (6) 2x6 Beam (
• (2) 2x7 Beam (
• (6) 2x8 Beam (
• (4) 2x10 Beam (
• (6) 2x12 Beam (
• (4) 2x16 Beam (
• (2) 2x18 Beam (
• (2) 2x20 Beam (
• (2) 3x3 Plate (
• (4) 4x4 Plate (
• (2) 4x8 Plate (
• (221) 1x1 Connector Pin (
• (53) 1x2 Connector Pin (
• (21) 2x2 Connector Pin (
• (11) 0.25x Pitch Standoff (
• (13) 0.5x Pitch Standoff (
• (13) 1x Pitch Standoff (
• (15) 2x Pitch Standoff (
• (5) 4x Pitch Standoff (
• (6) 6x Pitch Standoff (
• (7) 1x1 Idler Pin (
• (6) 2x Pitch Plastic Motor Shaft (
• (6) 4x Pitch Plastic Motor Shaft (
• (6) 3x Pitch Capped Plastic Shaft (
• (4) 5x Pitch Capped Plastic Shaft (
• (7) 0x2 Idler Pin (
• (22) 0x2 Connector Pin (
• (21) 0x3 Connector Pin (
• (6) 3x Pitch Plastic Motor Shaft (
• (11) 0.5x Pitch Standoff Extender (
• (24) Washer (
• (28) 0.25x Pitch Spacer (
• (2) 4x Pitch Shaft (
• (4) 6x Pitch Shaft (
• (6) Large Chassis Corner Connector (
• (15) Small Chassis Corner Connector (

• (11) 2x Wide, 1x2 Corner Connector (
• (9) 1x Wide, 1x1 Corner Connector (
• (13) 1x Wide, 1x1 Offset Corner Connector (
• (4) 2x Wide, 2x1 Offset Corner Connector (
• (5) 2x Wide, 2x1 Corner Connector (
• (3) 2x Wide, 1x1 Offset Corner Connector (
• (10) 2x Wide, 2x2 Corner Connector (
• (8) 2x Wide, 1x2 Offset Corner Connector (
• (4) 2x Wide, 2x2 Offset Corner Connector (
• (4) 2x Wide, 3x2 Corner Connector (
• (32) Rubber Shaft Collar (
• (4) 3x4 Tee Beam (
• (5) 2x3 Right Angle Beam (
• (4) 3x3 30 Degree Angle Beam (
• (4) 3x3 45 Degree Angle Beam (
• (4) 3x3 60 Degree Angle Beam (
• (4) 3x5 Right Angle Beam (
• (4) 4x4 Offset Right Angle Beam (
• (10) 1x1 Beam (
• (3) Rubber Band Anchor (
• (11) Cable Anchor (
• (13) Mini Standoff Connector (
• (9) End Standoff Connector (
• (9) 90 Degree Standoff Connector (
• (2) Tire (200 mm Travel) (
• (10) 12 Tooth Gear (
• (6) 36 Tooth Gear (
• (2) Double 2x Wide, 2x2 Corner Connector (
• (4) 24 Tooth Gear (
• (2) 48 Tooth Gear (
• (53) Chain Link (
• (4) 8 Tooth Sprocket (
• (4) 16 Tooth Sprocket (
• (2) 24 Tooth Sprocket (
• (5) Traction Link (
• (3) Short Intake Flap (
• (2) Medium Intake Flap (
• (2) 1x4 Crank Arm with 23 Tooth Gear (
• (5) Double 2x Wide, 1x2 Corner Connector (
• (4) Double 2x Wide, 2x2 Double Offset Corner Connector (
• (5) 1x Pitch Plastic Motor Shaft (
• (4) 2x Wide, 60 Degree Omni 1x2 Corner Connector(
• (2) 1x Wide Spool (
• (2) 24x Pitch Rope (
• (2) Silicone Rubber Band #32 (
• (1) 2x8 Smooth Panel (
• (4) 1x3 Center Lock Beam (
• (2) Small Wheel Hub (44mm) (
• (8) Triple 2x Wide, 2x2 Corner Connector (
• (5) 1x4 Low-Profile End Lock Beam (
• (6) 2x2 Center Offset Round Lock Beam (
• (2) 2x Wide, Ø48.5mm Diameter Hub (
• (2) 2x Wide, 5x Pitch Diameter Balloon Tire (Racing Slick Tread) (
• (3) 2x Pitch Capped Shaft (
• (3) 3x Pitch Capped Shaft (
• (3) 4x Pitch Capped Shaft (
• (2) 5x Pitch Capped Shaft (
• (4) 2x Pitch Motor Shaft (
• (4) 3x Pitch Motor Shaft (
• (4) 4x Pitch Motor Shaft (
• (2) Omni Wheels (
• (1) Pin Tool (
